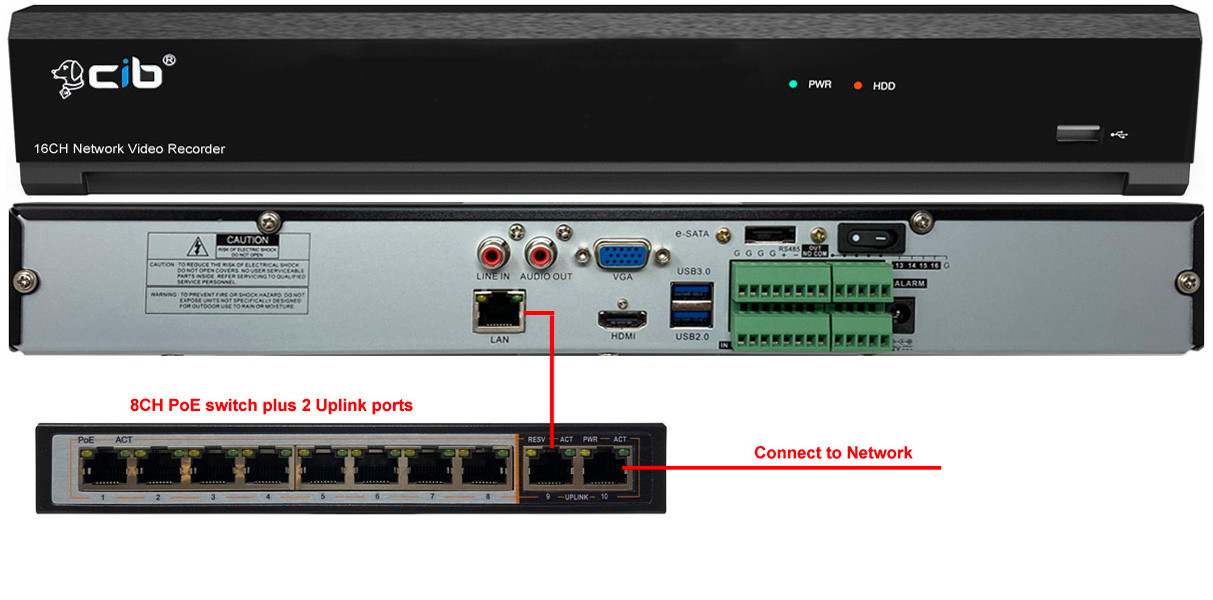

16CH NVR with an External 8CH PoE Switch 8MP/5MP/4MP (3840x2160 to 2592x1520) Magepixel Super HD HDMI 4K Output H.265 POE Network Video Recorder (No Hard Drive Included)

Package Content

• 16CH 8MP/5MP/4MP H.264/H.265 8xPOE plus 8xNON-POE Network NVR
• USB Mouse
• Smart P2P Auto Connection with QR Code Scan
• Smart Phone APP and PC Client Software
• CD with User Manual and Installation Guide
• One Year Full Warranty in USA

NVR Feature

• Video Input : 8CH IP POE Input plus 8CH IP NON-POE Input Total 16CH
• Video Resolution : 8MP/5MP/4MP/3MP/1080P/720P True HD High Resolution
• Video Output : HDMI 4K Output
• Live Frame Rate: 8M@480fps, 5M@480fps, 4M@320fps, 3M@480fps, 1080P@480fps
• Live View Resolution : 8MP/5MP/4MP/3MP/1080P/720P
• Compression: H.264/H.265
• Recording Bandwidth: Up to 320Mbps
• Recording Mode: Manual, Schedule, Event
• Search Mode: Date/time, Event, Motion
• Playback: Fast forward / backward (2x,4x,8x,16x), Slow forward(1/2x,1/4x,1/8x,1/16x) Step forward
• Monitoring: Webviewer, Mobile Viewer, CMS
• Smart P2P Auto Connection with QR Code Scan
• Free mobile App and PC client software
• Supported OS: Windows; Mac OS
• Mobile Device : iPhone, iPad, Android Smart Phone
• Supported Browser: IE, Firefox, Google Chrome, Safari
• Protocol Support: TCP/IP, UDP/IP, UDP
• Internal HDD: 4 SATA HDD capability up to 32TB
• External eSATA HDD capability up to 32TB. Total is 64TB
• USB Backup: 2xUSB2.0,1xUSB3.0
• Output: VGA and HDMI up to 4K
• Alarm trigger send images to designated e-mail
• Advanced motion detection function
• Audio: 1CH RCA in/ 1CH RCA out
• PTZ Control through RS-485
• Support PELCO-D PELCO-P protocol for PTZ Control
• Ethernet: 1 WAN RJ45 10/100/1000M Base-T / 8 LAN POE
• Power Input: 110-240V/3A, PoE:48V
• Dimensions (WxHxD): 380x50x340mm, Weight: 8kg
• Full compatible with Samsung IPC and NVR: NJ6516P, NJ6504P, NJ6508P, SNC-4241BE, SNR- D5401N
